Cover, Seat Back: Installation

CAUTION:

When the seat is removed from the vehicle, only use the back rest adjustment lever to move the back rest. Do not use the seat folding lever to move the back rest. Damage may occur to the seat folding mechanism.

GC0153149Courtesy of CHRYSLER GROUP, LLC
  1. Position the seat back cover (1) onto the seat back cushion (3) and attach new hog rings.
    GC0158967Courtesy of CHRYSLER GROUP, LLC

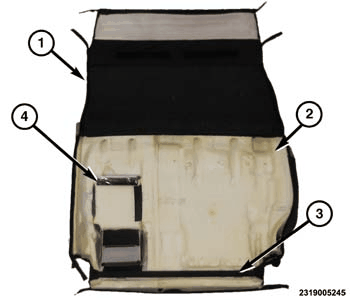

  2. Partially, fold the seat back cover (1) to the back of the seat back cushion (2), inserting the armrest through tabs (4) to the back of the cushion (2).
  3. Completely, fold the seat back cover (1) over to the back of the seat back cushion (2).
  4. Route the elastic band (3) to the back of the seat back cushion (2).
    GC0159105Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    Seat belt cover is right side seat only.

  5. Position the seat back cover and cushion onto the seat back frame.
  6. With the seat belt inserted though, install the seat belt cover (1).
  7. Install the two seat belt cover fasteners (2) and tighten securely.
  8. Install the headrest sleeves.
    NOTE:

    Right side seat only.

  9. Install the armrest.

    Refer to ARMREST, REAR, INSTALLATION .

    CAUTION:

    When the seat is removed from the vehicle, only use the back rest adjustment lever to move the back rest. Do not use the seat folding lever to move the back rest. Damage may occur to the seat folding mechanism.

  10. If not already in position, temporarily install the recliner lever to the outboard side cover area and carefully move the back rest forward.
    GC0158834Courtesy of CHRYSLER GROUP, LLC
  11. Position the seat back cover lower area (1) and engage the hook and loop fastener (2).
    GC0159032Courtesy of CHRYSLER GROUP, LLC
  12. Fasten the right and left side zippers (1) and bottom zipper (3).
  13. Tuck the ends of the side zippers (1) and bottom zipper (3) into the bottom of the seat back cover (2).
  14. Install the center seat belt buckle anchor. Refer to BUCKLE, SEAT BELT, INSTALLATION .
  15. Use the recliner lever to carefully move the back rest rearward.
    GC0158894Courtesy of CHRYSLER GROUP, LLC
  16. Fasten the seat back cover material into the tabs on the seat folding lever housing.
  17. Position the seat folding lever bezel (2) and insert into housing.
    GC0158930Courtesy of CHRYSLER GROUP, LLC
  18. Position the inboard side cover (1) to the seat.
  19. Install the fastener (3) and tighten securely.
  20. Install the fastener located to the rear of the inboard side cover (2) and tighten securely.
  21. Install the fastener covers to both of the fasteners.
    GC0158849Courtesy of CHRYSLER GROUP, LLC
  22. Position the outboard side cover (3) to the seat.
  23. Align and insert the recliner lever (2).
  24. Install the fasteners (1 and 4) and tighten securely.
  25. Install the fastener cover into the recliner lever (2) and over the fastener (4).
  26. Install the fastener into the rear of the side cover (5) and tighten securely.
  27. Install the fastener cover into the rear of the side cover (5).
