Armrest, Rear: Installation

Courtesy of CHRYSLER GROUP, LLC

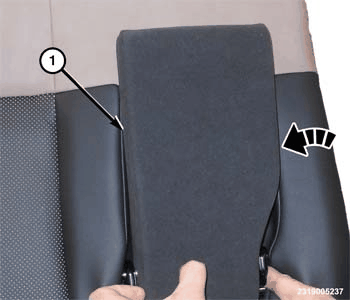

Insert the armrest (1) into of the armrest pocket, engaging it with the armrest brackets.

Courtesy of CHRYSLER GROUP, LLC

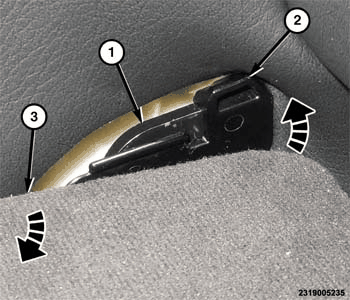

Position the seat cover material aside to access the retaining tabs (2) on the armrest retaining clips.
Press the retaining tabs (2) and rotate the armrest (3) toward the open position. At the same time rotating the retaining clips around the armrest bracket (1).

Courtesy of CHRYSLER GROUP, LLC

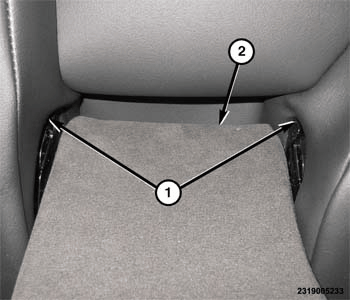

With the armrest in the down position, inspect the retaining tabs (1) are engaged to the top of the armrest bracket.

Courtesy of CHRYSLER GROUP, LLC

NOTE:

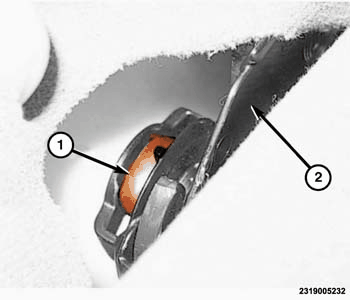

Care should be used as to not drop the lock clip (1) into the seat.
Position the seat cover material aside to access the armrest retaining clips (2).
Insert the lock clip (1) into both sides of the armrest retaining clips (2).

Courtesy of CHRYSLER GROUP, LLC

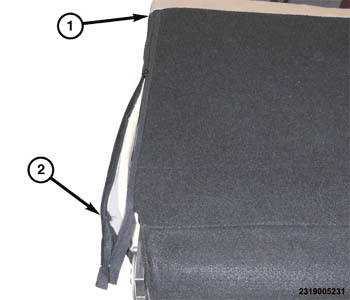

Fasten the zipper (2) on the seat back cover (1).
Tuck the inboard seat back cover zipper (2) into the lower area of the seat back cover.

Courtesy of CHRYSLER GROUP, LLC
Position the inboard side cover (1) to the seat.
Install the fastener (3) and tighten securely.
Install the fastener located to the rear of the inboard side cover (2) and tighten securely.
Install the fastener covers to both of the fasteners.
