Riser, Seat, Front: Installation

Courtesy of CHRYSLER GROUP, LLC

NOTE:

Right side shown, left side typical.

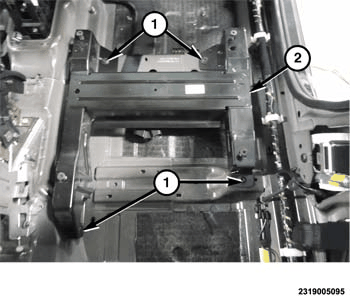

Lift the front and rear carpets to position the seat riser (2) into the vehicle.
Position the front seat riser (2) to the floor and install the fasteners (1) securely.
Align the front and rear carpets.

Courtesy of CHRYSLER GROUP, LLC
Install the floor console. Refer to CONSOLE, FLOOR, INSTALLATION .
Install the rear door scuff plate panel. Refer to PLATE, SCUFF, REAR DOOR SILL, INSTALLATION .
.
Install the cowl side trim panel. Refer to PANEL, COWL TRIM, SIDE, INSTALLATION .
Install the front seat. Refer to INSTALLATION .
