Glove Box Dampener

Courtesy of CHRYSLER GROUP, LLC

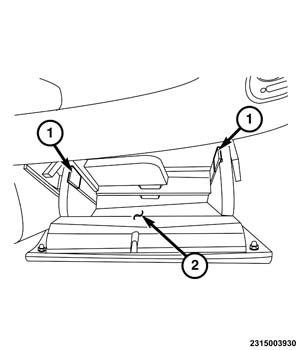

Open the glove box (2).
Using a trim stick (special tool #C-4755, Trim Stick) or equivalent, remove the stop blocks (1) from the glove box (2).

Courtesy of CHRYSLER GROUP, LLC

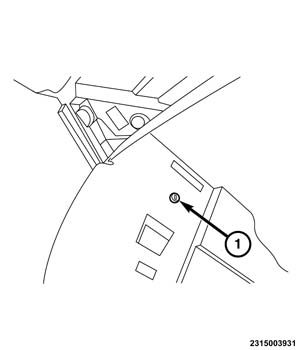

Slightly lower the glove box and release the retainer (1) for the travel limiter.
Completely lower the glove box.

Courtesy of CHRYSLER GROUP, LLC

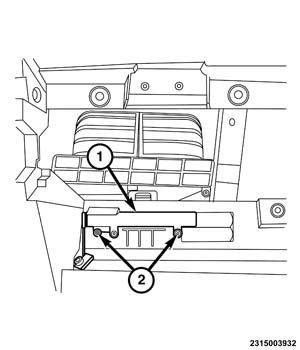

Remove the fasteners (2) from the travel limiter (1).
Remove the travel limiter (1).
