Gap Hider, Steering Column Shroud: Installation

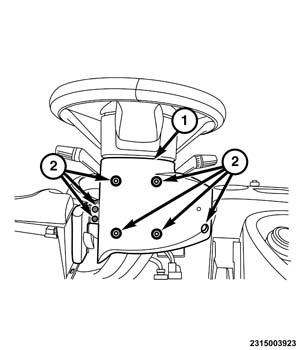

Courtesy of CHRYSLER GROUP, LLC

1. Route the upper shroud over the control lever.
2. Align the lower steering column shroud (1) to the upper steering column shroud and engage the retainers.
3. Install the fasteners (2) into the steering column shroud. (1) and tighten securely.

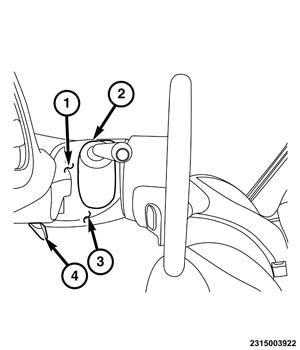

   Courtesy of CHRYSLER GROUP, LLC

4. Align the control trim bezel (2) to the upper (1) and lower (3) steering column shrouds.
5. Insert the control trim bezel (2), engaging the retainers fully.
