Insulation, Hood: Installation

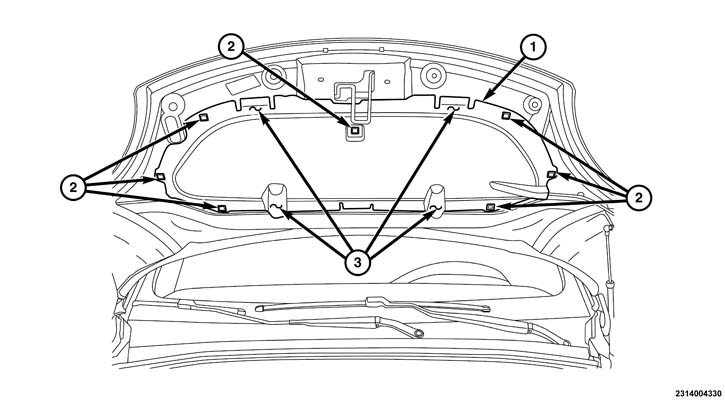

GC0159095Courtesy of CHRYSLER GROUP, LLC
  1. Position the hood insulator (1).
  2. Insert the tabs (3) of the hood insulator (1) into the inner hood.
  3. Insert the seven retaining clips (2) into the hood insulator (1).
  4. Close the hood.
