Hinge, Hood: Installation

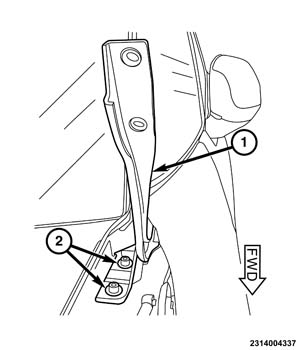

Courtesy of CHRYSLER GROUP, LLC

Position the hood hinge (1) to the body.
Loosely install the hood hinge fasteners (2).
Align the hood hinge to the marks made during the removal.
Tighten the hood hinge fasteners (2) to 25 Nm (18 lbf-ft).

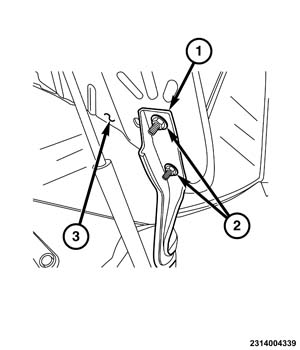

Courtesy of CHRYSLER GROUP, LLC
Install the hood (3). Refer to HOOD, INSTALLATION .
Check the hood for proper alignment and adjust as necessary.
Install the cowl panel. Refer to COVER, COWL PANEL, INSTALLATION .
