Bezel, Hood: Installation

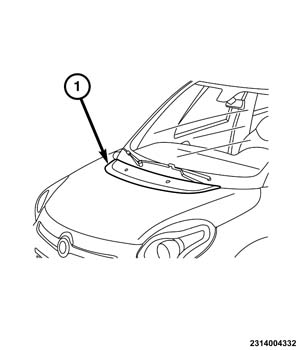

GC0158716Courtesy of CHRYSLER GROUP, LLC
  1. Position the hood bezel (1) to the to the hood and engage the front retainers fully.
  2. Open the hood.

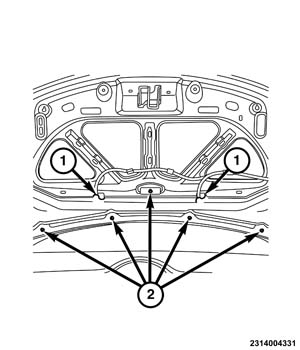

    GC0158617Courtesy of CHRYSLER GROUP, LLC
  3. Install the five fasteners (2) securing the hood bezel and tighten securely.
  4. Connect the windshield washer hoses (1) onto the washer nozzles.
    GC0159095Courtesy of CHRYSLER GROUP, LLC
  5. Install the hood insulator. Refer to INSULATION, HOOD, INSTALLATION .
  6. Close the hood.
