Panel, Closure, Radiator: Removal

WARNING:

To avoid serious or fatal injury on vehicles equipped with airbags, disable the Supplemental Restraint System (SRS) before attempting any steering wheel, steering column, airbag, seat belt tensioner, impact sensor or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the SRS. Failure to take the proper precautions could result in accidental airbag deployment.

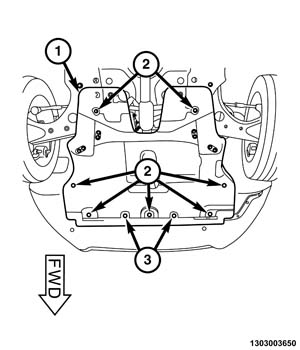

GC0159128Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the negative battery cable.
  2. Raise and support the vehicle.

    Refer to HOISTING, STANDARD PROCEDURE .

  3. Remove the engine belly pan (1). Refer to BELLY PAN, REMOVAL .
  4. Remove the front fascia. Refer to FASCIA, FRONT, REMOVAL .
  5. Remove the right and left lower front lamp units. Refer to UNIT, FRONT LAMP, LOWER, REMOVAL .

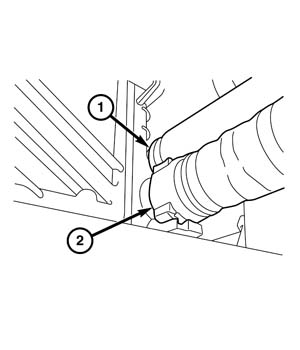

    GC0159024Courtesy of CHRYSLER GROUP, LLC
  6. Recover the refrigerant from the refrigerant system.

    Refer to PLUMBING, STANDARD PROCEDURE .

  7. Drain the cooling system. Refer to DRAINING .
  8. Working on the right side of the radiator, disconnect the coolant hose (2).
  9. Disconnect the charge air cooler hose (1).

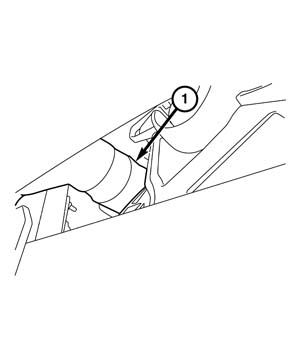

    GC0158845Courtesy of CHRYSLER GROUP, LLC
  10. Working on the left side of the radiator, disconnect the charge air cooler hose (1).
    GC0158585Courtesy of CHRYSLER GROUP, LLC
  11. Working on the right side of the radiator, remove the two air conditioning line bracket nuts (1).
    GC0152540Courtesy of CHRYSLER GROUP, LLC
  12. Remove the bolt (4) and disconnect the A/C liquid line and the A/C discharge line from the A/C condenser tapping block (3). Remove and discard the dual plain seals.
  13. Install plugs in, or tape over, the opened refrigerant line fittings and condenser ports.

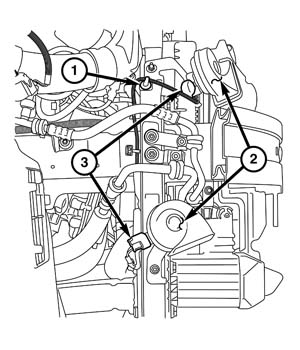

    GC0158695Courtesy of CHRYSLER GROUP, LLC
  14. Disconnect the wiring connectors (3) from the horns (2).
  15. Unfasten the wiring routing clip (1).
    GC0158835Courtesy of CHRYSLER GROUP, LLC
  16. Remove the fasteners (3) from the lower bumper reinforcement (2).
  17. Repeat on the opposite side.
    GC0158996Courtesy of CHRYSLER GROUP, LLC
  18. Remove the fasteners (2) from coolant bottle (1).
  19. Release the coolant bottle hose retaining clips and position the coolant bottle (1) aside.
    GC0158595Courtesy of CHRYSLER GROUP, LLC
  20. With the use of a trim stick or equivalent, release the retainer (3) securing the windshield washer reservoir (1) filler neck (2).
  21. Position the windshield washer reservoir (1) aside.

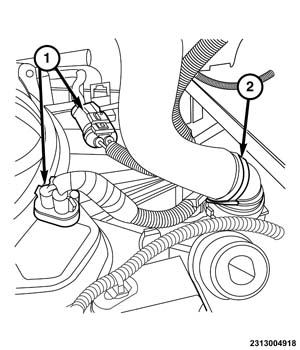

    GC0158986Courtesy of CHRYSLER GROUP, LLC
  22. Working on the left side of the radiator, disconnect the coolant hose (2).
  23. Disconnect the cooling fan wiring connectors (1).

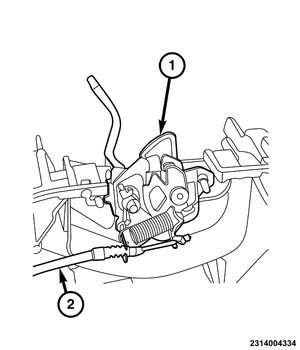

    GC0158801Courtesy of CHRYSLER GROUP, LLC
  24. Disconnect the hood release cable (2) from the hood latch (1).
  25. Release the hood release cable (2) routing clips.

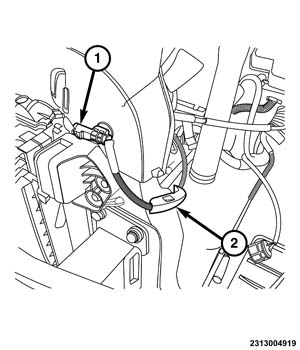

    GC0159069Courtesy of CHRYSLER GROUP, LLC
  26. Disconnect the front impact sensor wiring harness connector (1).
  27. Release the harness routing clip (2).
    GC0158610Courtesy of CHRYSLER GROUP, LLC
  28. Place a suitable support under the radiator closure panel to support it during removal.
  29. Remove the fasteners (2) from the upper bumper reinforcement (1).
  30. With the help of an assistant, remove the radiator closure panel from the vehicle.
