Molding, Body Side: Removal

Courtesy of CHRYSLER GROUP, LLC

NOTE:

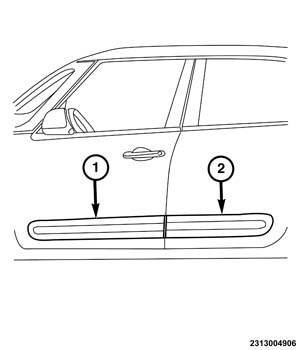

Front door (1) shown, rear door (2) typical.

If the temperature is below 21°C (70°F), warm the body side molding (1 or 2) with a heat lamp or heat gun.
NOTE:
The body side moldings are attached with retainers and a small amount of adhesive tape on the end.
Remove the door trim panel of the door being serviced. Refer to PANEL, DOOR TRIM, REMOVAL or PANEL, REAR DOOR TRIM, REMOVAL .
Remove the watershield from the appropriate door. Refer to WATERSHIELD, DOOR, REMOVAL or WATERSHIELD, REMOVAL .

Courtesy of CHRYSLER GROUP, LLC

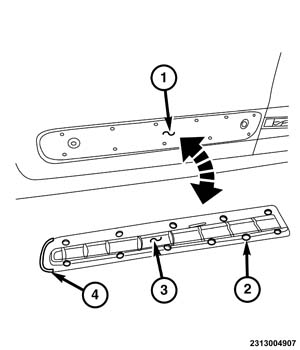

From within the door (1), squeeze the tabs on the retainers (2), with the use of appropriate pliers.
Release all of the body side molding (3) inner retainers (2).
Using a trim stick (special tool #C-4755, Trim Stick) or equivalent to release the adhesive tape (4).
Remove the body side molding (3) from the vehicle.
