Mirror, Outside Rearview: Removal

GC0158773Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the negative battery cable.
  2. Remove the front door trim panel (1).

    Refer to PANEL, DOOR TRIM, REMOVAL .

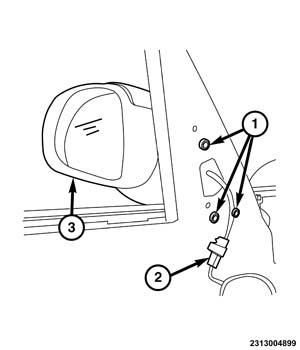

    GC0158749Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the outside rear view mirror wiring connector (2), if so equipped.
  4. Remove the three fasteners (1).
  5. Remove outside rear view mirror (3) from the door.
