Body - Interior & Exterior - 500L: Exterior: Grille: Removal

GC0158896

Courtesy of CHRYSLER GROUP, LLC

CAUTION:

Take the proper precautions to protect the face of the front fascia from cosmetic damage.

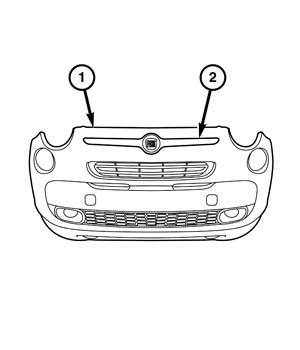

Remove the front fascia (1) and place it on a workbench.
Refer to FASCIA, FRONT, REMOVAL .

NOTE:
The grille (2) is secured with fasteners and retainers on the back of the fascia (1).

Courtesy of CHRYSLER GROUP, LLC

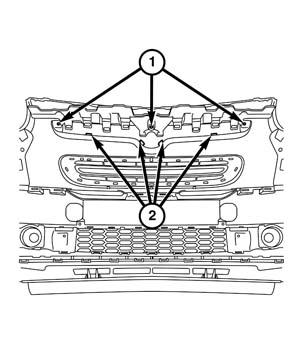

Remove the screws (1) that secure the grille to the inside of the front fascia.
With the use of a flat bladed tool, release the grille retainers (2).
Remove the grille from the fascia.
