Door, Fuel Fill: Removal

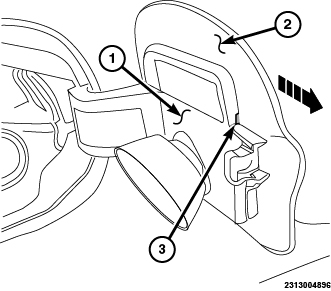

GC0158622Courtesy of CHRYSLER GROUP, LLC
  1. Open the fuel filler door (2).
  2. With the use of a small flat bladed or pick tool inserted into the access slot (3), release the inner retainer.
  3. While the inner retainer is in the released position, slide the fuel door (2) outward, releasing it from the slides on the fuel fill housing (1).
