Hinge, Door: Removal
NOTE:
Driver side shown, passenger side similar.
- Remove the rear door. Refer to DOOR, REAR, REMOVAL .

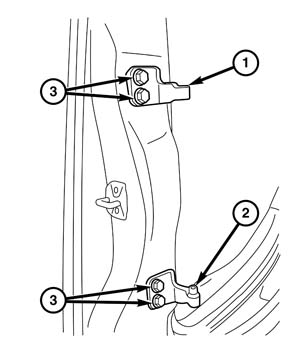

- Body side hinge half- NOTE:
Upper and lower hinge halves are serviced exactly the same.
- Mark position of the upper hinge half (1) and/or lower hinge (2) on the upper B-pillar and/or lower B-pillar with a grease pencil or other suitable device to aid in installation.
- Remove bolts (3) attaching hinge to door the upper B-pillar and/or lower B-pillar and remove the hinge.

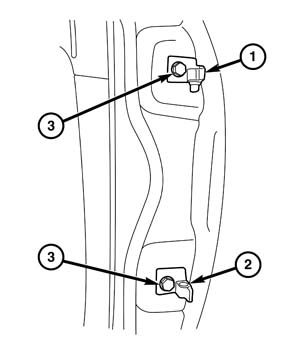

Door side hinge half-
NOTE:Upper and lower hinge halves are serviced exactly the same.
- Mark position of upper hinge (1) and/or lower hinge (2) on the upper door and/or lower door with a grease pencil or other suitable device to aid in installation.
- Remove bolt (3) attaching hinge to the upper door and/or the lower door and remove the hinge.
