Handle, Exterior: Removal

Courtesy of CHRYSLER GROUP, LLC

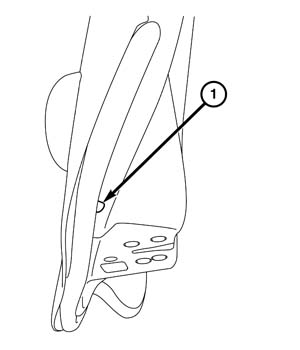

Remove the access cover (1) from the inner door.
Loosen the inner fastener to the end of travel.

Courtesy of CHRYSLER GROUP, LLC

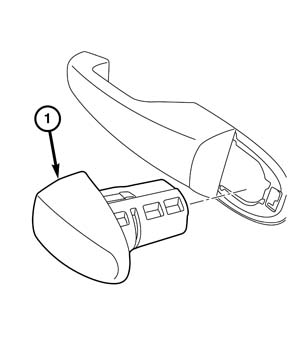

Remove the door handle end cap (1). Refer to CYLINDER, DOOR LOCK, REMOVAL .

Courtesy of CHRYSLER GROUP, LLC
Slide the exterior door handle (1) rearward to release.
Rotate the exterior door handle (1) out of the door.
