Doors - Rear: Applique: Removal

Courtesy of CHRYSLER GROUP, LLC

B-Pillar Applique-

1. Lower window fully.
2. Remove the outer belt molding. Refer to MOLDING, DOOR BELT, OUTER, REMOVAL .
3. Remove the door trim panel.

   Refer to PANEL, REAR DOOR TRIM, REMOVAL .

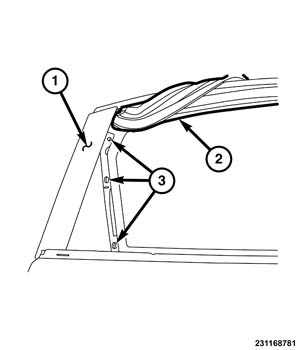

4. Partially remove the rear portion of the door glass channel (2).
5. Remove the three C-pillar applique (1) fasteners (3).
6. Remove the C-pillar applique (1) from the vehicle.

Courtesy of CHRYSLER GROUP, LLC

B-Pillar Applique-

1. Lower window fully.
2. Remove the door trim panel.

   Refer to PANEL, REAR DOOR TRIM, REMOVAL .

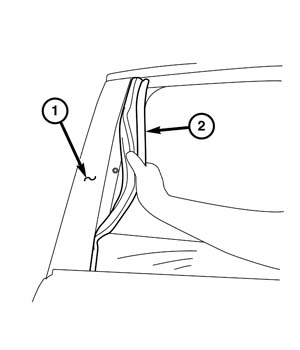

3. Partially remove the front portion of the door glass channel (2).

   Courtesy of CHRYSLER GROUP, LLC

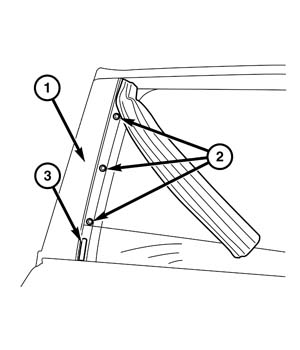

4. Remove the three fasteners (2) from the B-pillar applique (1).
5. Remove the B-pillar applique (1) from the vehicle.
