Hinge, Door: Removal
NOTE:
Driver side shown, passenger side similar.
- Remove the front door. Refer to DOOR, REMOVAL .
- Body side hinge half- NOTE:
Upper and lower hinge halves are serviced exactly the same.

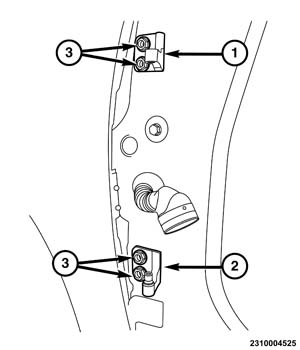

- Mark position of the upper hinge half (1) and/or lower hinge (2) on the upper A-pillar and lower A-pillar with a grease pencil or other suitable device to aid in installation.
- Remove bolts (3) attaching hinge to door the upper A-pillar and/or lower A-pillar frame and remove the hinge.
Door side hinge half-
NOTE:Upper and lower hinge halves are serviced exactly the same.

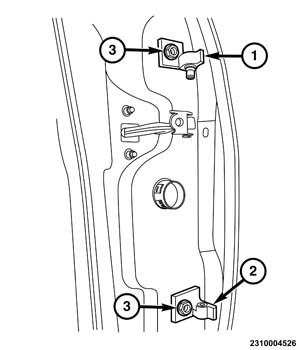

- Mark position of upper hinge (1) and/or lower hinge (2) on the upper door and/or lower door with a grease pencil or other suitable device to aid in installation.
- Remove bolt (1) attaching hinge to the upper door and/or the lower door and remove the hinge.
