Door - Front: Applique: Removal

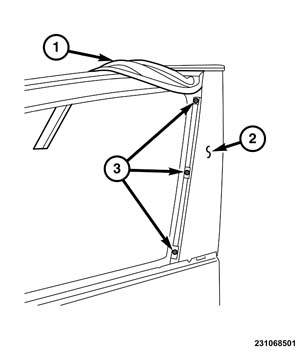

GC0156391

Courtesy of CHRYSLER GROUP, LLC

Lower the door glass fully.
Remove the door trim panel.
Refer to PANEL, DOOR TRIM, REMOVAL .
Remove the rear portion of the door glass run channel (1).
Remove the three door applique (2) fasteners (3).
Remove the door applique (2).
