Audio/Video/Entertainment/Connectivity (Service Information) - 500L: Amplifier: Removal

  1. Disconnect the negative battery cable.
  2. Remove the right side Quarter Panel Trim. Refer to PANEL, QUARTER TRIM, REAR, REMOVAL .

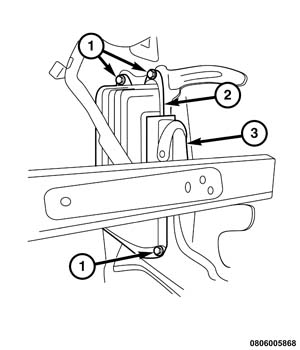

    GC0158593Courtesy of CHRYSLER GROUP, LLC
  3. Remove the amplifier (2) to mounting bracket retainers (1).
  4. Disconnect the amplifier electrical connector (3).
  5. Remove the amplifier from the vehicle.
