Camshaft, Engine: Removal

Courtesy of CHRYSLER GROUP, LLC

Remove the cylinder head cover (1)
Refer to COVER(S), CYLINDER HEAD, REMOVAL .

Courtesy of CHRYSLER GROUP, LLC
Remove the timing belt
Refer to BELT, TIMING, REMOVAL .
Use the
(special tool #6847, Holder, Camshaft Sprocket)

Courtesy of CHRYSLER GROUP, LLC

(2) and remove the bolt (1) and the camshaft sprocket (3).

Courtesy of CHRYSLER GROUP, LLC
Remove the three bolts (2) and the
(special tool #10277, Tool, Camshaft Timing Locking)

Courtesy of CHRYSLER GROUP, LLC

(1).

Courtesy of CHRYSLER GROUP, LLC
Install the (special tool #10259B, Compressor, MultiAir® Spring) (2) with four bolts (1) tightened to 9 N.m (80 in. lbs.).
Rotate the spring compressors (3) CCW until fully seated.

Courtesy of CHRYSLER GROUP, LLC

NOTE:
Camshaft bearing caps are marked during engine manufacturing. For example, the center camshaft bearing cap is marked "C". The markings on the caps (1) should align with the markings on the camshaft housing (2).

CAUTION:
DO NOT STAMP OR STRIKE THE CAMSHAFT BEARING CAPS. SEVERE DAMAGE WILL OCCUR TO THE BEARING CAPS.

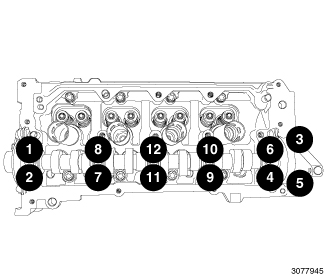

Fig 1: Camshaft Bearing Cap Bolt Removal Sequence
Courtesy of CHRYSLER GROUP, LLC
Slowly loosen the camshaft bearing cap bolts in the sequence shown in illustration.
Remove the camshaft bearing caps and the camshaft.
