Body, Air Cleaner: Installation

GC0176828Courtesy of CHRYSLER GROUP, LLC
  1. If removed, assemble the air inlet hose and tighten the band clamp (1).
    GC0176809Courtesy of CHRYSLER GROUP, LLC
  2. If removed, install the air inlet hose and tighten the screws (1).
    GC0176847Courtesy of CHRYSLER GROUP, LLC
  3. Set the air cleaner body (4) into position and engage the mount grommets.
  4. Connect the quick coupling for the fuel vapor pipe (3).
  5. Connect the quick coupling for the air pipe (2).
  6. Connect the turbocharger air delivery pipe to the air cleaner body cover and tighten the band clamp (1).

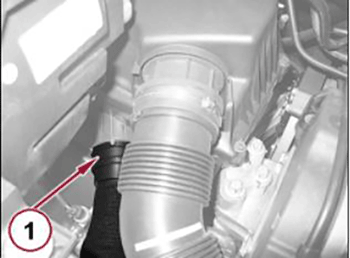

    GC0176786Courtesy of CHRYSLER GROUP, LLC
  7. Attach the fresh air intake hose (1) to the air cleaner body.
  8. Install the engine cover .
