Air Cleaner: Removal

  1. Remove the engine cover .
    GC0176847Courtesy of CHRYSLER GROUP, LLC
  2. Loosen the band clamp (1) and disconnect the turbocharger air delivery pipe from the air cleaner body cover.
  3. Disconnect the quick coupling for the air pipe (2).
  4. Disconnect the quick coupling for the fuel vapor pipe (3).
  5. Remove the screws and remove the air cleaner body cover (4).
    GC0176839Courtesy of CHRYSLER GROUP, LLC

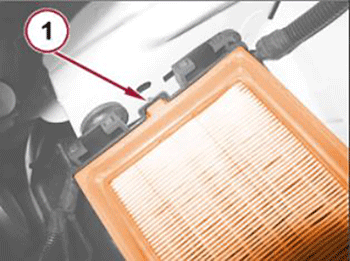

  6. Remove the air cleaner element (1) from the air cleaner body.
