Air Cleaner: Installation

GC0176813Courtesy of CHRYSLER GROUP, LLC

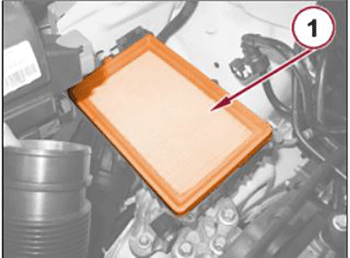

  1. Install the air cleaner element (1) to the air cleaner body.
    GC0176847Courtesy of CHRYSLER GROUP, LLC

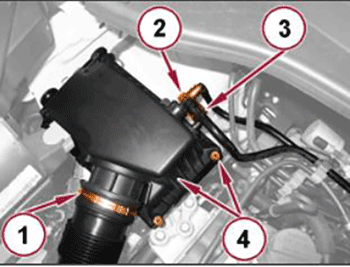

  2. Install the air cleaner body cover and tighten the screws (4) to 4 N.m (35 in. lbs.).
  3. Connect the quick coupling for the fuel vapor pipe (3).
  4. Connect the quick coupling for the air pipe (2).
  5. Connect the turbocharger air delivery pipe to the air cleaner body cover and tighten the band clamp (1).
  6. Install the engine cover .
