Tube, Mechanism: Removal

GC0158793Courtesy of CHRYSLER GROUP, LLC
  1. Remove the headliner. Refer to HEADLINER, REMOVAL .
  2. Remove the sunshade (1). Refer to SUNSHADE, SUNROOF, REMOVAL .
    GC0158739Courtesy of CHRYSLER GROUP, LLC
  3. Remove the sunroof motor (1). Refer to MOTOR, SUNROOF, REMOVAL .
    GC0158715Courtesy of CHRYSLER GROUP, LLC
  4. Remove the fasteners (1) from the mechanism tube (2).
  5. Repeat on the opposite side.
    GC0159007Courtesy of CHRYSLER GROUP, LLC
  6. Disconnect the wiring connectors (3) for the antenna.
  7. Unfasten the connections (3) from the vehicle.
  8. Remove the fastener (2) from the mechanism tube mount (1).

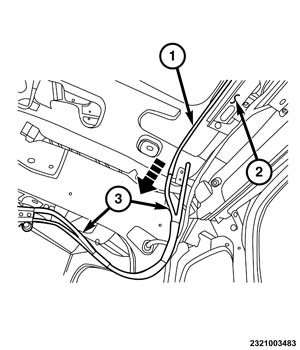

    GC0159047Courtesy of CHRYSLER GROUP, LLC
  9. With the help of an assistant, remove the mechanism tube (3) releasing it from the bowden/drive cables (1) in the guides (2).
  10. Remove the mechanism tube (3) from the vehicle.
