Cover, Seat Cushion, Front: Assembly

NOTE:

Passenger seat shown. Driver seat similar.

GC0153149Courtesy of CHRYSLER GROUP, LLC
  1. If necessary, install a new Occupant Detection Sensor (ODS) onto the passenger side seat bottom cushion. Refer to SENSOR, OCCUPANT DETECTION, INSTALLATION .
  2. If necessary, install a new heated seat pad onto the seat bottom cushion. Refer to PAD, HEATER, INSTALLATION .
  3. Position the seat bottom cover (1) onto the seat bottom cushion (3) and attach new hog rings (2).

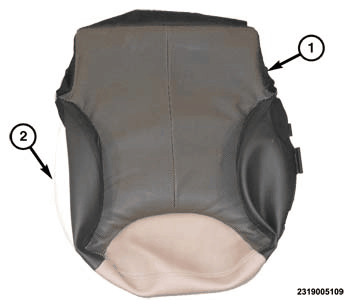

    GC0159106Courtesy of CHRYSLER GROUP, LLC
  4. Fold the seat back cover (1) completely over to the bottom of the seat back cushion (1).
  5. Install the seat bottom cushion and cover. Refer to COVER, SEAT CUSHION, REAR, INSTALLATION .
