Console, Floor: Removal

Courtesy of CHRYSLER GROUP, LLC

Disconnect and isolate the negative battery cable.
Unfasten the button (1).
Release the hook and loop fastener (4).
With the use of a trim stick (special tool #C-4755, Trim Stick) or equivalent, release the retainers securing the shifter bezel (3) to the floor console (2).

Courtesy of CHRYSLER GROUP, LLC
Disconnect the shifter bezel wiring connector (2), if so equipped.
Raise the shifter bezel (1) over the shifter handle and remove from the vehicle.

Courtesy of CHRYSLER GROUP, LLC
Position the parking brake handle in the full up position.
Grasp the park brake handle bezel (1) in the center area (2).
Pull upward to release the retaining tabs.

Courtesy of CHRYSLER GROUP, LLC
Reach into the rear area of the shifter housing (1) and press the retaining tabs on the back of the electronic stability control switch (2) and then pushing up releasing the switch.
Disconnect the wiring connector from the switch (2).

Courtesy of CHRYSLER GROUP, LLC

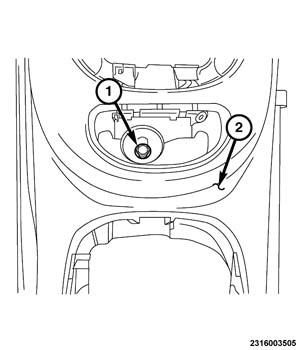

Remove fastener (1) from the floor console (2).

Courtesy of CHRYSLER GROUP, LLC

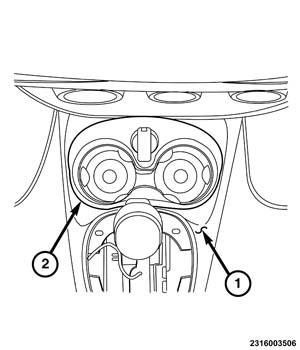

With the use of a trim stick (special tool #C-4755, Trim Stick) or equivalent, release the retainers securing the cup holder bezel (2) to the floor console (1).

Courtesy of CHRYSLER GROUP, LLC

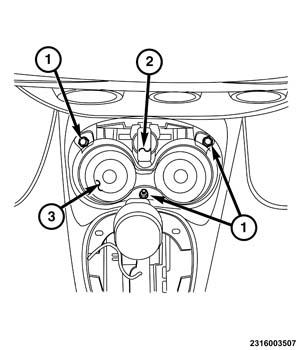

Remove the fasteners (1) from the cup holder (3).
Lift up the cup holder (3) and disconnect the wiring connector for the accessory power outlet (2).

Courtesy of CHRYSLER GROUP, LLC

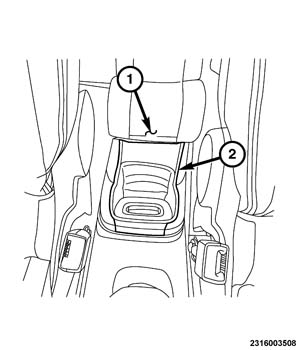

With the use of a trim stick (special tool #C-4755, Trim Stick) or equivalent, placed between the armrest hinge (1) and arm rest bezel, release the armrest bezel (2) retainers.

Courtesy of CHRYSLER GROUP, LLC

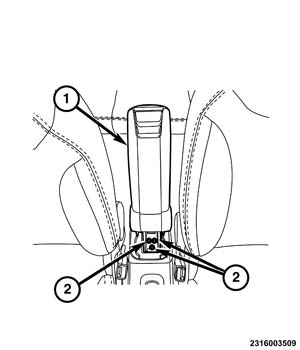

Remove the armrest fasteners (2).
Remove the armrest (1).

Courtesy of CHRYSLER GROUP, LLC

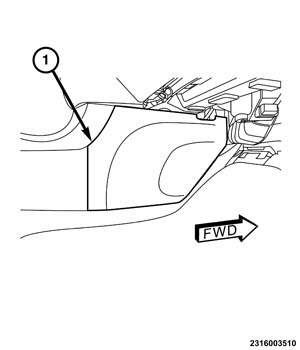

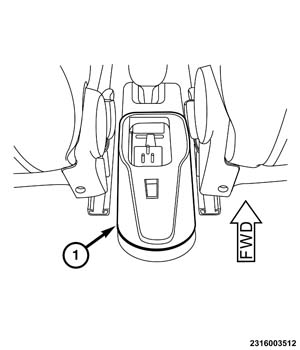

With the use of a trim stick (special tool #C-4755, Trim Stick) or equivalent, release the retainers along the rear edge of the floor console side cover (1).
Slide the floor console side cover (1) rearward to release front retainer.

Courtesy of CHRYSLER GROUP, LLC

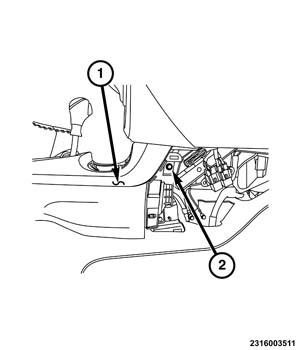

Remove the fastener (2) from the front of the floor console (1).
Repeat on he opposite side.

Courtesy of CHRYSLER GROUP, LLC
With the use of a trim stick (special tool #C-4755, Trim Stick) or equivalent, release the retainers for the floor console rear cover (1). If equipped, disconnect the wire harness connector and remove.

Courtesy of CHRYSLER GROUP, LLC

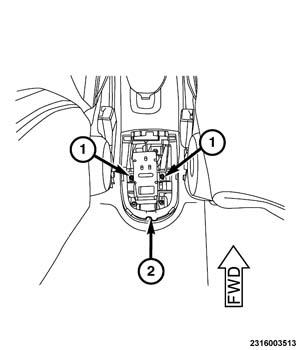

Remove the fasteners (1) securing the rear of the floor console (2).

Courtesy of CHRYSLER GROUP, LLC

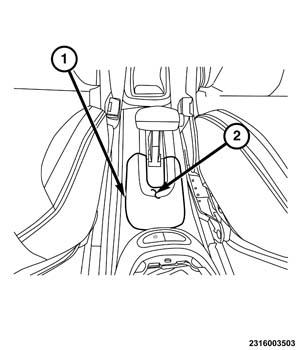

Position the parking brake in the full up position.
Slide the floor console (1) slightly rearward.
Lift the floor console (1) from the rear and then up, routing it over the shifter.
Remove the floor console from the vehicle.
