Home >> Fiat >> 2017 >> 500L Lounge >> Repair and Diagnosis >> Accessories & Equipment >> Infotainment >> (Audio (Radio) - Electrical Diagnostics - 500L) >> DTC Troubleshooting >> B143A-13 - Microphone 1 - Circuit Open >> Notes

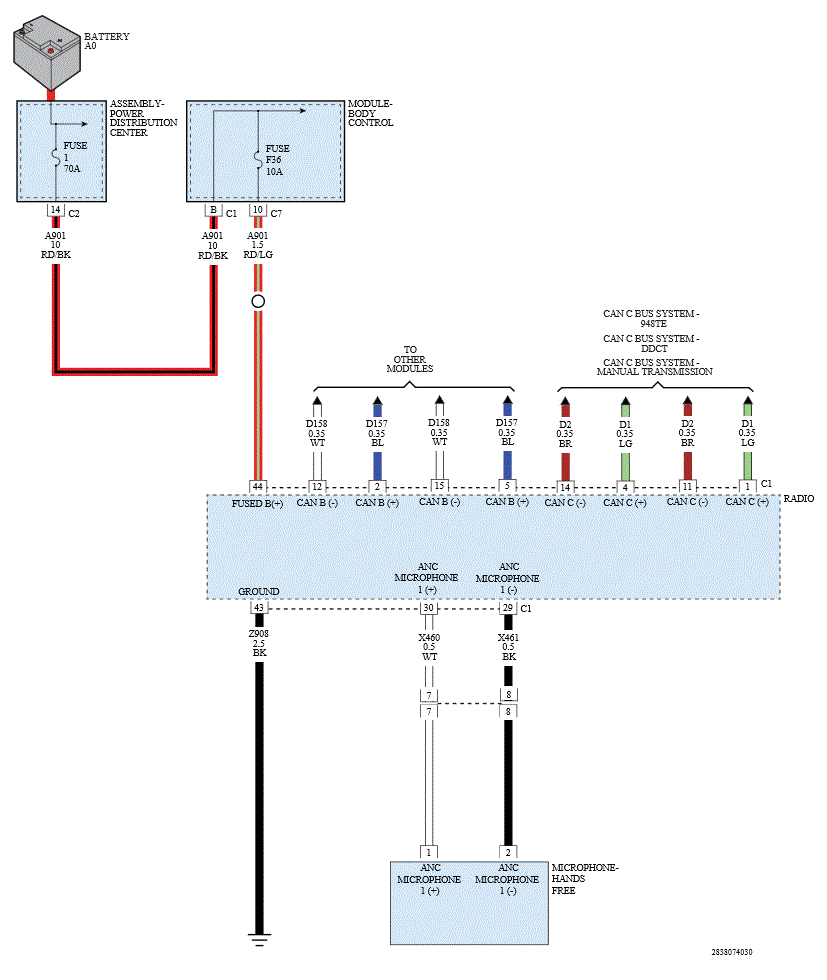

B143A-13 - Microphone 1 - Circuit Open: Notes

GC0168571

Courtesy of CHRYSLER GROUP, LLC
