Cover, Beauty: Removal

WARNING: This page is about a different variant/trim than selected.

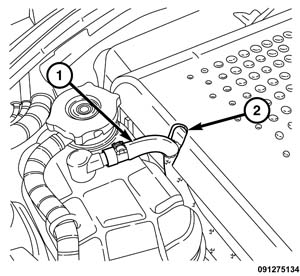

GC0157638Courtesy of CHRYSLER GROUP, LLC
  1. Pinch the power electronics coolant reservoir return hose (1) with two fingers and disconnect the hose from cover notch (2).

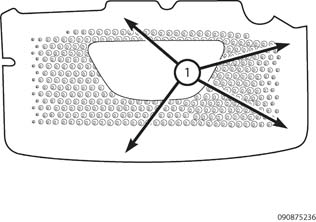

    GC0157873Courtesy of CHRYSLER GROUP, LLC
  2. Grasp the beauty cover at attaching points (1) as shown above.

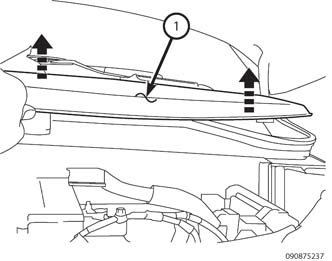

    GC0157704Courtesy of CHRYSLER GROUP, LLC
  3. Lift the beauty cover (1) straight upward.
