Cover, Beauty: Installation
WARNING: This page is about a different variant/trim than selected.
NOTE:
Do not use any lubricants on the rubber grommets.

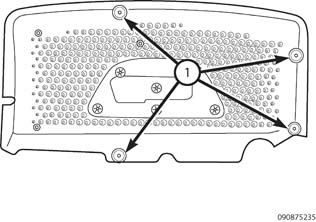

- Inspect the rubber grommets (1) for secure fit in the cover.
- Position the beauty cover over the four mounting posts.
- Using palm pressure, push down onto the cover at the four points (1) above the posts until fully seated.
- Pinch the power electronics coolant reservoir return hose (1) and insert into the notch (2).
