Panel, Trim, Liftgate: Removal

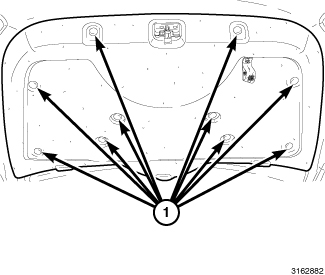

GC0152962Courtesy of CHRYSLER GROUP, LLC
  1. Open the liftgate.
  2. Remove the fasteners (1) securing the trim panel to the liftgate.
  3. Remove the trim panel.
