Weatherstrip/Seals, Full Open Retractable Roof: Removal

Courtesy of CHRYSLER GROUP, LLC

1. Disconnect the negative battery cable.
2. Remove the decklid. Refer to DECKLID, CONVERTIBLE, REMOVAL .

   Courtesy of CHRYSLER GROUP, LLC

   NOTE:

   Rear shelf trim panel removed for clarity.

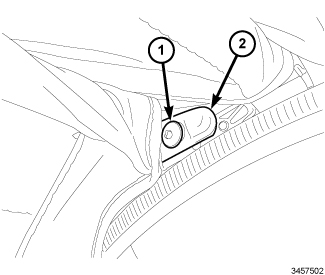

3. The roof can be opened or closed manually using a socket or the wrench provided in the vehicle's tool kit attached to the motor (1), accessible in the opening located in the trim panel under the rear shelf.

   Courtesy of CHRYSLER GROUP, LLC

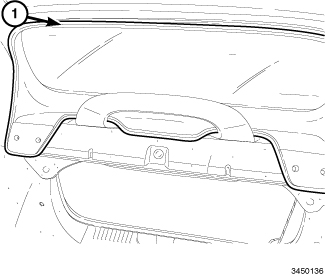

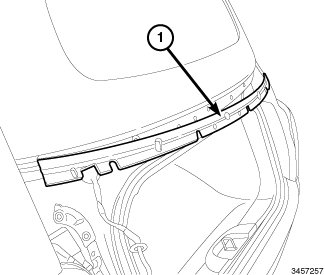

4. Remove the decklid cut seal (1) by peeling away on one side and working across.

   Courtesy of CHRYSLER GROUP, LLC

5. Remove the rear wind deflector/windscreen (1) by pulling up.

   Courtesy of CHRYSLER GROUP, LLC

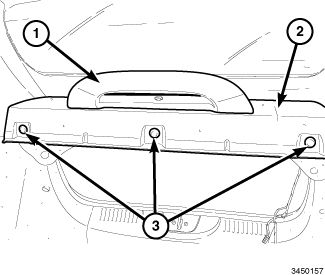

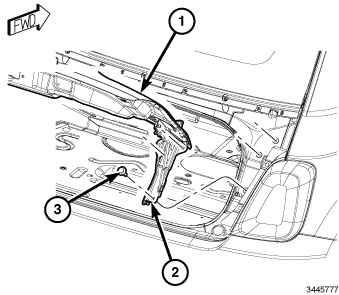

6. Remove the three fasteners securing the bracket (1) to the rear shelf (2).
7. Remove the bracket (1).
8. Remove the push pin retainers (3) from the rear shelf.
9. Remove the rear shelf.

   Courtesy of CHRYSLER GROUP, LLC

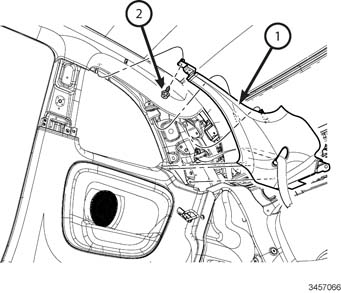

10. Using trim stick (special tool #C-4755, Trim Stick) or equivalent, disengage the B-pillar trim panel retaining tabs/clips located at the bottom and upper rear areas. There is also a retaining tab that mates to the C-pillar. Repeat on the opposite side.
11. Pull downward on the B-pillar trim panel (1). Repeat on the opposite side.
12. Reposition the B-pillar trim panel (1). Repeat on the opposite side.

    Courtesy of CHRYSLER GROUP, LLC

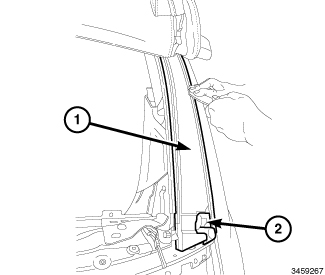

13. Using trim stick (special tool #C-4755, Trim Stick) or equivalent, disengage the C-pillar trim panel retaining tabs/clips and reposition the C-pillar trim panel (1). Repeat on the opposite side.

    Courtesy of CHRYSLER GROUP, LLC

14. Drill out the four rivets (1) securing the motor cover plate (2) and remove the plate.
15. Remove the headliner fabric from the rear shield and the entire backlight/glass areas.

    Courtesy of CHRYSLER GROUP, LLC

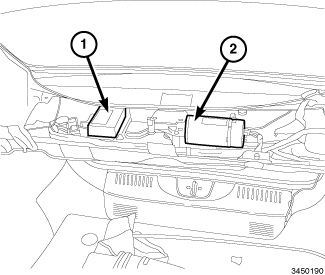

16. Disconnect the electrical connector from the motor (1) and the module (2).
17. Detach the harness from the rear shelf.

    Courtesy of CHRYSLER GROUP, LLC

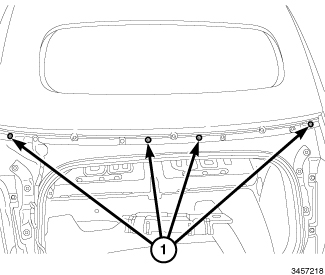

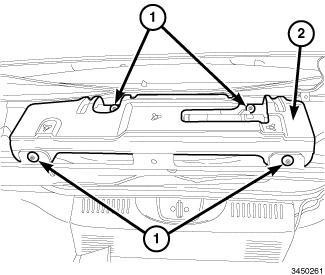

18. Remove the four fasteners (1) securing the tension bar.

    Courtesy of CHRYSLER GROUP, LLC

19. Remove the tension bar (1).

    Courtesy of CHRYSLER GROUP, LLC

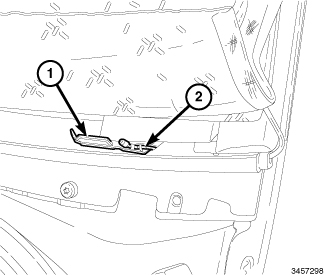

20. Lift the cover up to expose the tension cable (2) and bracket (1).
21. Using a china marker, mark the location for the bracket (1). Repeat on the opposite side.
22. Remove the fastener securing the bracket (1) to the roof frame. Repeat on the opposite side.
23. Separate the tension cable (2) from the bracket (1). Repeat on the opposite side.

    Courtesy of CHRYSLER GROUP, LLC

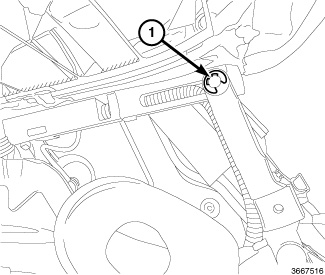

24. Remove the clip (1) from the backlight bracket. Repeat on the opposite side.
25. Separate the backlight bracket. Repeat on the opposite side.

    Courtesy of CHRYSLER GROUP, LLC

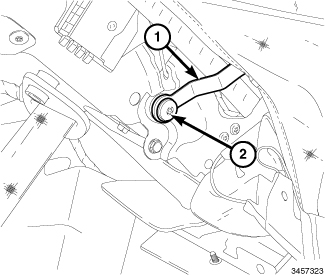

26. Accessing from inside the vehicle, remove the fastener (2) and four washers from the backlight/glass linkage (1). Repeat on the opposite side.

    Courtesy of CHRYSLER GROUP, LLC

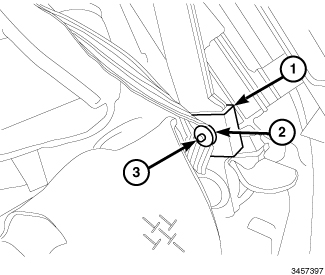

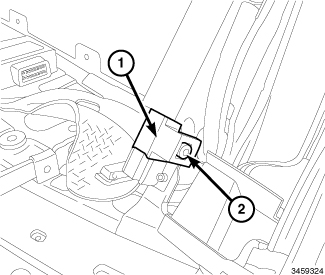

27. Using a small punch and needlenose pliers, disengage the pin (3) from the fastener (2). Repeat on the opposite side.
28. Remove the headliner tension belt/tether (1) from the linkage. Repeat on the opposite side.

    Courtesy of CHRYSLER GROUP, LLC

29. Remove the fastener (1) securing the four bow cap (2). If replacing the cover, save the bolt and cap for re-use. Repeat on the opposite side.
30. Detach the four bow.

    Courtesy of CHRYSLER GROUP, LLC

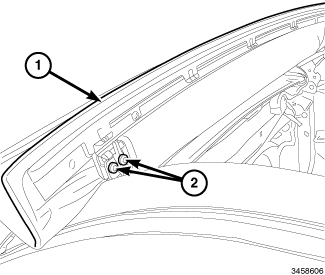

31. Open the roof (1) fully until the front edge tilts back.
32. Remove the front bow bolts (2). Repeat on the opposite side.
33. Close the roof (1) to 3/4 open position.

    Courtesy of CHRYSLER GROUP, LLC

34. Drill out the rivet (1) securing the front tension belt to the front bow. Repeat on the opposite side.
35. Remove the front bow tension belt. Repeat on the opposite side.

    Courtesy of CHRYSLER GROUP, LLC

36. Separate the cover from the second bow retainer (1). Repeat on the opposite side.

    Courtesy of CHRYSLER GROUP, LLC

37. Detach the seal at the bottom of the rear track cover (1).
38. Using trim stick (special tool #C-4755, Trim Stick) or equivalent, disengage the rear track cover (1) by prying up the outboard edge of the cover and rolling the track cover inward. Repeat on the opposite side.

    Courtesy of CHRYSLER GROUP, LLC

39. Remove the fastener securing the rear stop block (1). Do not misplace the square nut insert.  Repeat on the opposite side.

    Courtesy of CHRYSLER GROUP, LLC

40. Disengage the top stow slider block (1) by turning the front screw (2) clockwise. Repeat on the opposite side.
41. Slide the roof rearward to disengage the remaining roof bow blocks.
42. Remove the cover.

    Courtesy of CHRYSLER GROUP, LLC

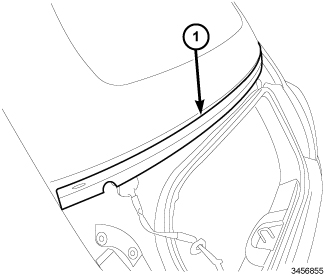

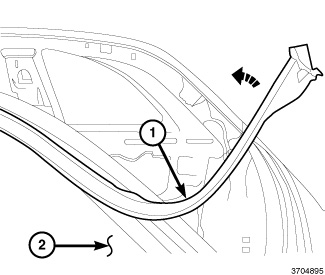

43. At rear of weatherstrip (1), pull outward and upward.
44. Continue to roll the weatherstrip (1) off of the perimeter of the folding top frame until weatherstrip (1) is completely removed.
