Bin, Under Seat Storage: Removal

GC0153143Courtesy of CHRYSLER GROUP, LLC
  1. Remove the passenger side seat and place on bench. Refer to SEAT, FRONT, REMOVAL .
  2. Place the seat upside down, open the storage bin door and remove the two fasteners (1) from the bin liner.

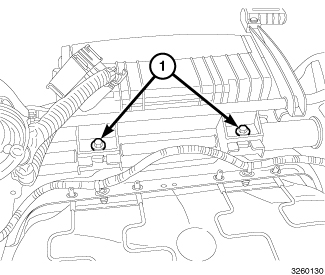

    GC0153144Courtesy of CHRYSLER GROUP, LLC
  3. Remove the fasteners (1) securing the storage bin to the seat frame.
  4. Remove the storage bin from the passenger seat.
