Tube, Drain: Installation

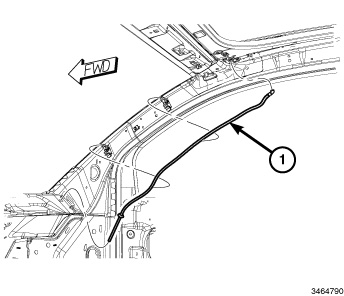

GC0153539Courtesy of CHRYSLER GROUP, LLC
  1. Align and position the drain tube (1) to the mounting clips located along the A-pillar and install the drain tube.
    GC0153535Courtesy of CHRYSLER GROUP, LLC
  2. Attach the drain tube (1) at the cowl panel, make sure the grommet is properly seated.  .
    GC0153538Courtesy of CHRYSLER GROUP, LLC
  3. Attach the drain tube (1) at the roof frame.
  4. Install the headliner side rail trim panel. Refer to HEADLINER, SIDE RAIL, INSTALLATION .
  5. Install the A-pillar. Refer to PANEL, A-PILLAR TRIM, INSTALLATION .
  6. Install the instrument panel cover. Refer to COVER, INSTRUMENT PANEL, INSTALLATION .
