Full Open Retractable Roof, Power: Spoiler: Removal
NOTE:
NOTE: Sunshade is held in place by rear seatbacks. No fastener removal is required.
- Disconnect and isolate the negative battery cable
- Remove the rear window sunshade (1) if equipped. Push down the rear seat release buttons, located at the outboard top of the seatbacks and move the seatbacks to their folded-down position in order to remove the rear window sunshade.

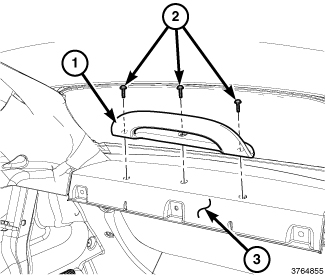

- Remove the grab handle bracket (1) from the rear window package tray (3) by removing the three retaining fasteners (2).

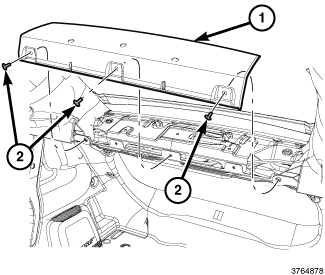

- Remove the three retaining clips (2) in order to remove the rear window package tray (1).
- Remove the sides of the headliner (1) from the rear window side retaining channels.
- Repeat on the opposite side.

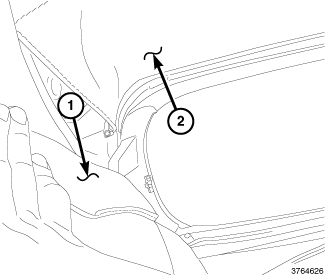

- Pull back the rear headliner sail panels (1) in order to access the rear upper headliner (2).
- Remove the upper headliner (1) from the rear window upper retaining channel.
- Unclip the spoiler wiring harness connector (2) from the spoiler reinforcement.
- Disconnect the wiring connector (2).
- Place an assistant outside the vehicle to hold the spoiler.
- Along the top of the spoiler reinforcement (2), remove the four spoiler fasteners (1). Do not remove the lower spoiler reinforcement fasteners (3).
- From outside the vehicle, remove the spoiler harness grommet and pull the harness through the hole in the cover.
- Remove the spoiler assembly (1) from the cover.
