Full Open Retractable Roof, Power: Headliner: Removal

GC0153776Courtesy of CHRYSLER GROUP, LLC
NOTE:

NOTE: Sunshade is held in place by rear seat backs. No fastener removal is required.

  1. Remove the rear window sunshade (1), if installed. Push down the rear seat release buttons, located at the outboard top of the seat backs and move the seat backs to their folded-down position in order to remove the rear window sunshade.
    GC0153782Courtesy of CHRYSLER GROUP, LLC
  2. Remove the horseshoe bezel (1) from the rear window package tray (3) by removing the three retaining fasteners (2).
    GC0153783Courtesy of CHRYSLER GROUP, LLC
  3. With the use of trim tool (special tool #C-4829A, Remover, Trim) or equivalent, remove the three retaining clips (2) from the rear window package tray (1).
  4. Remove the package tray from the vehicle.
    GC0157579Courtesy of CHRYSLER GROUP, LLC
  5. Release the headliner strap (2) hook and loop fastener on each side.
  6. With the use of trim tool (special tool #C-4829A, Remover, Trim) or equivalent, remove the push pin fasteners (1) from the rear lower headliner and c-pillar trim (3).
    GC0157598Courtesy of CHRYSLER GROUP, LLC
  7. Remove the push pin fastener under the lower package tray closeout panel (3).
  8. Position the c-pillar trim (1) and lower closeout panel (3) aside and release the headliner strap (2) hook and loop fastener.
    GC0153500Courtesy of CHRYSLER GROUP, LLC
  9. Using a small hook pick and a pair of needle-nose pliers, disengage the center pin (3) from the fastener (2).
  10. Remove the fastener (2), releasing the tension belt from the linkage (1).
    GC0157898Courtesy of CHRYSLER GROUP, LLC
  11. With the use of side cutters or equivalent, cut the wire tie (2) securing the headliner sail panel strap (1) to the linkage. Care must be taken to not cut the wiring harness on the left side
    GC0157591Courtesy of CHRYSLER GROUP, LLC
  12. Release the lower headliner (2) hook and loop fastener from the rear window.
  13. Remove the sides of the headliner (1) from the rear window side retaining channels.
    GC0153780Courtesy of CHRYSLER GROUP, LLC
  14. Remove the upper headliner (1) from the rear window upper retaining channel.
    GC0153508Courtesy of CHRYSLER GROUP, LLC
  15. Open the retractable roof fully until the front bow (1) tilts back.
  16. Remove the front bow bolts (2). Repeat on the opposite side.
  17. Remove the front of the headliner from the retaining channel of the front roof bow (1).

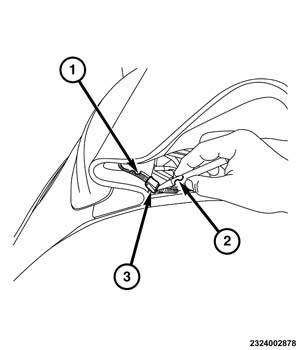

    GC0157914Courtesy of CHRYSLER GROUP, LLC
  18. Close the retractable roof 3/4 of the way.
  19. Locate the tension belt clip (3) located under the cover near the quarter sail panel area.
  20. With the use of a grease pencil (2) or equivalent, mark where the front portion of the tension belt (1) meets the edge of the retaining clip.

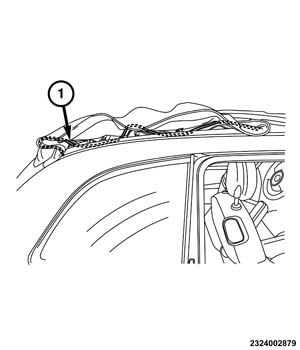

    GC0157853Courtesy of CHRYSLER GROUP, LLC
  21. For ease of installation, note the routing of the tension belt (1) as it loops through the roof bows and headliner.
  22. Release the retaining clip and route the tension belt (1) through the roof bows and headliner.

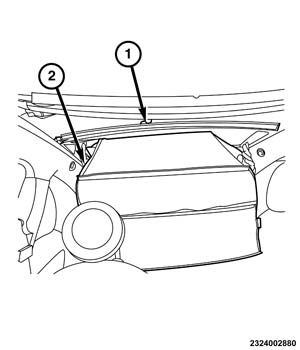

    GC0157656Courtesy of CHRYSLER GROUP, LLC
  23. With the use of hand pressure, carefully pull the outer edge of the headliner (2) bead out of the slot in the roof bow (1).
  24. Work across the bow (1) until the bead is released.
  25. Repeat on the remaining roof bows.
  26. Remove the headliner (2) from the vehicle.
