Nozzle, Washer: Removal: Front

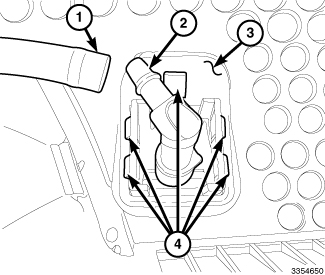

GC0153304Courtesy of CHRYSLER GROUP, LLC
  1. Remove the cowl plenum cover/grille panel (3) from the vehicle. Refer to COVER, COWL PANEL, REMOVAL .
  2. From the underside of the cowl plenum cover/grille panel, disconnect the hose connection (1) from the barbed nipple (2) of the front washer nozzle.
  3. From the underside of the cowl plenum cover/grille panel, release the five integral latch features (4) of the front washer nozzle and push the nozzle out through the mounting hole toward the top side of the panel.
  4. Remove the front washer nozzle from the top of the cowl plenum cover/grille panel.
