Audio/Video/Entertainment/Connectivity (Service Information) 500 - Except Electric: Speaker: Removal: Subwoofer
- Disconnect the negative battery cable.
- Remove the left rear quarter trim panel. Refer to PANEL, QUARTER TRIM, REAR, REMOVAL
.

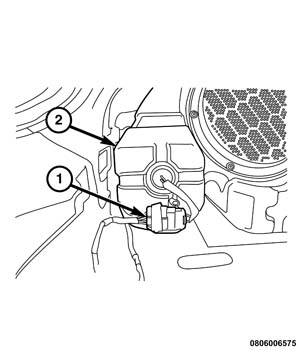

- Disconnect the subwoofer assembly (2) electrical connector (1).

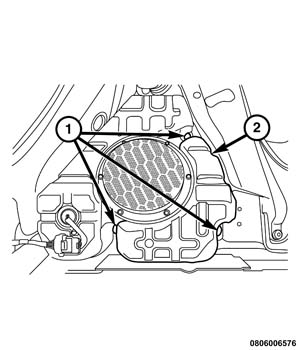

- Remove the three subwoofer assembly (2) retaining nuts (1).
- Remove the subwoofer assembly from the vehicle.
