Fiat 500

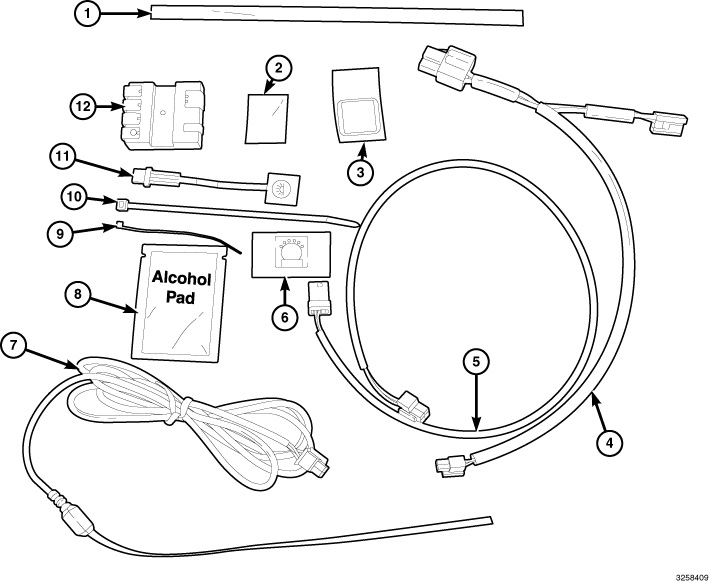

GC0143904Courtesy of CHRYSLER GROUP, LLC
Call Out Description Parts Quantity
1 Plastic Mounting Strip Supplied in kit 3
2 Adhesive Tape (Double Sided) Supplied in kit 1
3 Switch Frame Supplied in kit 1
4 Power Harness Supplied in kit 1
5 Switch Harness Supplied in kit 1
6 Switch Template Supplied in kit 1
7 LED Light Strip Supplied in kit 4
8 Alcohol Pad Supplied in kit 1
9 Small Tie Strap Supplied in kit 16
10 Large Tie Strap Supplied in kit 6
11 Ambient Light Switch Supplied in kit 1
12 Control Module Supplied in kit 1

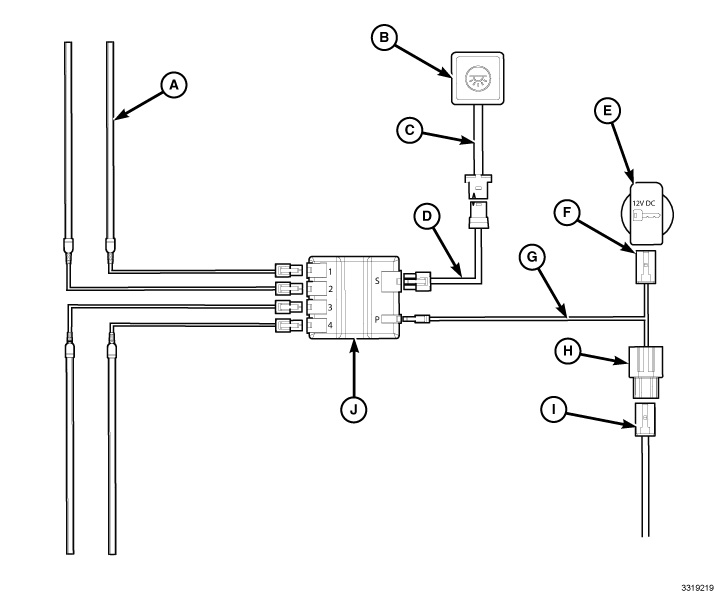

GC0143909Courtesy of CHRYSLER GROUP, LLC
Call Out Description
A LED Light Strip
B Switch Frame
C Ambient Light Switch
D Switch Harness
E Factory 12V Key Power Outlet
F Power Harness Connector (Gray)
G Power Harness
H Power Harness Connector (White)
I Factory 12V Key Power Outlet Connector
J Control Module
Tools Required
10 mm Socket and Ratchet Trim Stick C-4755 or equivalent Phillips Screwdriver Ruler or Other Measuring Device
Dremel® or similar device Drill ? inch and ? inch Drill Bits Torx® T25 Bit and Driver

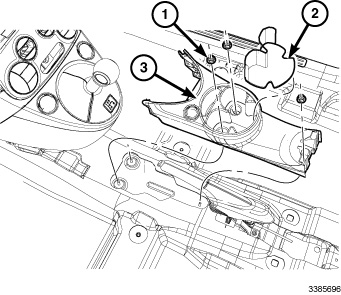

GC0153385Courtesy of CHRYSLER GROUP, LLC
  1. Place the floor console near its installed position.
  2. Connect the cable from the ambient light switch to the switch harness that is connected to the ambient light control module.
  3. Align the front floor console (3) in the vehicle, making sure the wires for the ambient lighting are tucked in and are not pinched during installation.
  4. Install the retaining nuts (1) located in the cupholder cavity and in the rear of the front floor console (3). Tighten the retaining nuts securely.
  5. Install the front cupholder insert (2).
    GC0152908Courtesy of CHRYSLER GROUP, LLC
  6. Install the screw (1) securing the front console to shifter bezel cover. Tighten the screw securely. Repeat for the opposite side.
    GC0152905Courtesy of CHRYSLER GROUP, LLC
  7. Position the left side closeout cover (1) and hand tap to engage the rear retaining tabs.
  8. Install the screw (2) to the left side closeout panel (1). Tighten the screw securely.
    GC0152895Courtesy of CHRYSLER GROUP, LLC
  9. Position the right closeout cover (1) into the vehicle push forward to engage the retaining clip in the floor.
  10. Hand tap to engage the front floor console to closeout cover retaining clips.
  11. Install the screw (2) to the right side console closeout cover (1). Tighten the screw securely.
    GC0152910Courtesy of CHRYSLER GROUP, LLC
  12. Slide the rear floor console (1) over the parking brake handle and position into the vehicle.
  13. Push the rear floor console forward to engage the front to rear floor console retaining clips/tabs.
  14. Install the rear retaining nut (3) located in the rear cupholder cavity. Tighten the nut securely.
  15. Install the rear cupholder insert (2).
  16. Position the parking brake handle down fully.
  17. Connect the battery negative cable.
  18. Ensure that the ambient lighting works as it is intended.
