Full Open Retractable Roof, Power: Headliner: Installation

GC0153508Courtesy of CHRYSLER GROUP, LLC
  1. Open the roof (1) fully until the front edge tilts back.
  2. Install the front bow bolts (2) and tighten securely.
  3. Repeat on the opposite side.
  4. Position the folding top in the fully closed position.
    GC0157818Courtesy of CHRYSLER GROUP, LLC
  5. Position the headliner into the vehicle.
  6. Insert the rear of the headliner (1) into the rear window upper retaining channel.

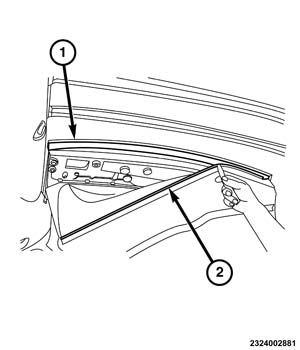

    GC0157593Courtesy of CHRYSLER GROUP, LLC
  7. Using trim stick (special tool #C-4755, Trim Stick) or equivalent, insert the rear bead (2) of the headliner into the center slot in the rear roof bow (1).
  8. Continue working across the bow until the headliner bead (2) is fully seated.
  9. Inspect the headliner bead to the roof bow seam to be certain the bead is fully seated.
  10. Repeat on the next four headliner beads and roof bows, progressively working forward.
  11. To release the tension on the headliner, position the folding top approximately 610 mm. (2 ft.) open.
  12. Install the front headliner bead into the next roof bow.
    GC0157938Courtesy of CHRYSLER GROUP, LLC
  13. Insert the front hard edge of the headliner into the slot in the front roof bow.
    NOTE:

    Be certain there are no twists in the tension belts (1) as they are routed through the bows.

    GC0157853Courtesy of CHRYSLER GROUP, LLC
  14. Route the tension belts (1) through the roof bows as noted during the removal.
    GC0157914Courtesy of CHRYSLER GROUP, LLC
  15. Insert the front portion of the tension belt (1) into the clip (3) on the rear portion of the tension belt.
  16. Pull the tension belt (1) through until the mark made during removal lines up with the retaining clip (1).
  17. Secure the tension belt retaining clip (3).
    GC0157898Courtesy of CHRYSLER GROUP, LLC
  18. With the use of a wire tie (2) attach the headliner sail panel strap (1) and wiring harness (left side only) to the linkage.
  19. Repeat on the opposite side.
    GC0153500Courtesy of CHRYSLER GROUP, LLC
  20. Attach the tension belt/tether to the linkage (1). Repeat on the opposite side.
  21. Engage the center pin (3) into the fastener (2).
  22. Repeat on the opposite side.
    GC0157591Courtesy of CHRYSLER GROUP, LLC
  23. Insert the sides of the headliner (1) into the rear window retaining channels.
  24. Attach the lower headliner (2) hook and loop fastener to the rear window.
    GC0157598Courtesy of CHRYSLER GROUP, LLC
  25. Position the c-pillar trim (1) and lower closeout panel aside and secure the headliner strap (2) hook and loop fastener.
  26. Install the push pin fasteners under the lower package tray closeout panel (3).
    GC0157579Courtesy of CHRYSLER GROUP, LLC
  27. Install the push pin fasteners (1) to the lower headliner and c-pillar trim (3).
  28. Secure the headliner strap (2) hook and loop fasteners on each side
    GC0153783Courtesy of CHRYSLER GROUP, LLC
  29. Position the rear window package tray (1).
  30. Install the push pin retainers (2) to the package tray (1).
    GC0153782Courtesy of CHRYSLER GROUP, LLC
  31. Position the horseshoe bezel (1).
  32. Install the three fasteners (2) securing the bezel (1) to the package tray (3). Tighten the fasteners securely.
    GC0153469Courtesy of CHRYSLER GROUP, LLC
  33. Install the rear wind deflector/windscreen (1).
  34. Inspect and cycle the folding top assembly for proper function.
