Front Lower Grille

WARNING: This page is about a different variant/trim than selected.

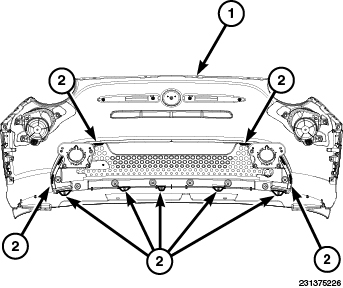

GC0157660Courtesy of CHRYSLER GROUP, LLC
  1. Remove the front fascia (1). Refer to REMOVAL .
  2. Place the front fascia (1) on a work bench.
  3. Using trim stick (special tool #C-4755, Trim Stick), or equivalent press the lower grille retaining tabs (2) while pushing that area of the grille out of the fascia (1).
  4. Continue to release all the tabs (2) along the lower grille perimeter.

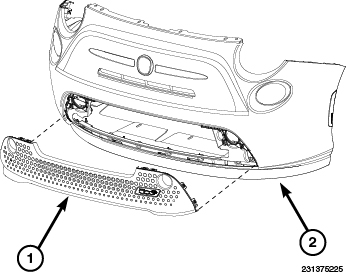

    GC0157784Courtesy of CHRYSLER GROUP, LLC
  5. Remove the lower grille (1) from the fascia (2).
