WATERSHIELD, Door: Removal

WARNING: This page is about a different variant/trim than selected.

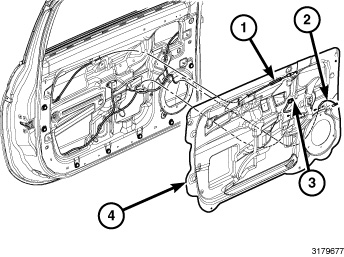

GC0153034Courtesy of CHRYSLER GROUP, LLC
  1. Remove the door panel. Refer to PANEL, DOOR TRIM, REMOVAL  .
  2. Peel the weather shield (4) from the door from the top.
    NOTE:

    If the weather shield is being re-used, peel away slowly to avoid damage.

  3. Pull the latch cable (1) and wiring harnesses (2, 3) out from the weather shield (4).
  4. Remove the weather shield (4) from the door.
