Striker, Door Latch: Removal

WARNING: This page is about a different variant/trim than selected.

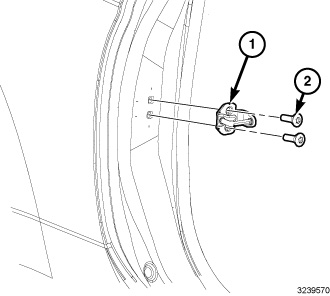

GC0153090Courtesy of CHRYSLER GROUP, LLC
  1. Remove fasteners (2) from door jamb.
  2. Remove door striker (1) from vehicle.
