Flag, Mirror: Removal

WARNING: This page is about a different variant/trim than selected.
GC0103283Courtesy of CHRYSLER GROUP, LLC

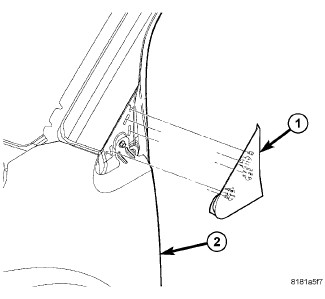

  1. Using trim stick (special tool #C-4755, Trim Stick), pry up mirror flag (1) and remove from door (2).
