Knob, Gearshift: Installation

WARNING: This page is about a different variant/trim than selected.

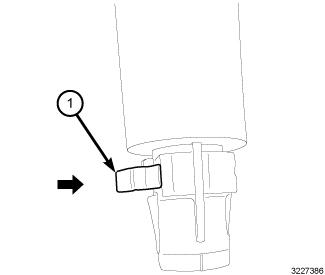

GC0153080Courtesy of CHRYSLER GROUP, LLC
  1. Install the retention spring to the shift knob.

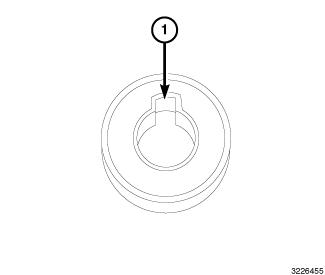

    GC0153079Courtesy of CHRYSLER GROUP, LLC
  2. Align the collar keyway (1) so that it installs on the knob facing forward.

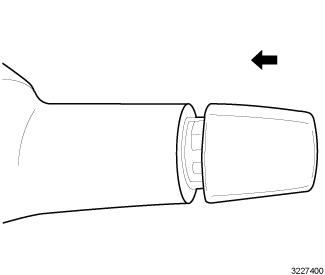

    GC0153081Courtesy of CHRYSLER GROUP, LLC
  3. Install the collar to the shift knob and seat fully.
    GC0153082Courtesy of CHRYSLER GROUP, LLC
  4. Install the shift knob (1) onto the shifter shaft (2) and seat fully, an audible click should be heard.
  5. Firmly pull up on the knob to verify proper installation.
