Section 61 (Aw60T Automatic Transmission (Service Information) - 500): Description: Notes
WARNING: This page is about a different variant/trim than selected.

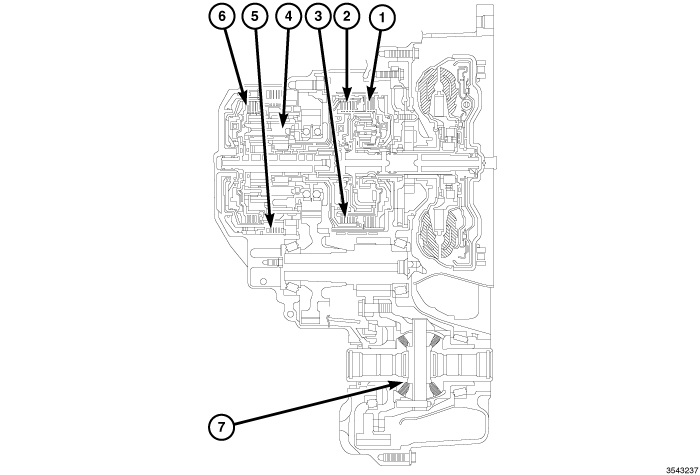

| 1 - C3 Clutch Assembly |
| 6 - C2-Clutch Assembly |
| 2 - B1 Brake Band |
| 7 - Differential Assembly |
| 3 - C1 Clutch Assembly |
| 4 - One-Way Clutch |
| 5 - B2 Clutch |
The AW60T/6F25 is an electronically controlled six-speed automatic transmission with a lock-up mechanism. The planetary gear train for the AW60T/6F25 transmission provides six forward gears and one reverse gear.
