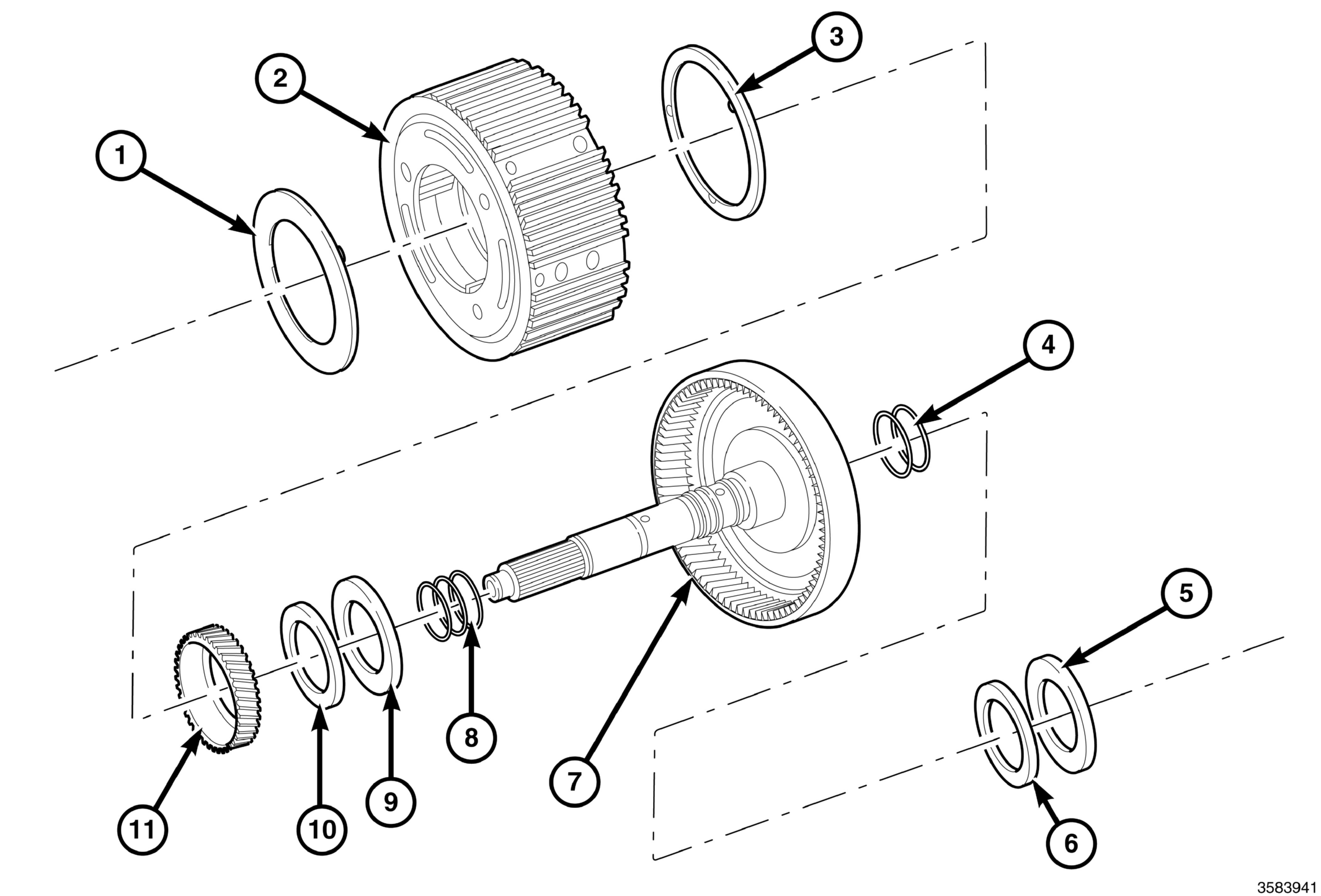

Front Planetary Gear Assembly And Input Shaft
WARNING: This page is about a different variant/trim than selected.
 Courtesy of CHRYSLER GROUP, LLC
|
| 1 - Thrust Washer |
| 7 - Input Shaft |
| 2 - Planetary Gear Assembly |
| 8 - Oil Seals |
| 3 - Thrust Washer |
| 9 - Bearing Race |
| 4 - Oil Seals |
| 10 - Thrust Bearing with Race |
| 5 - Bearing Race |
| 11 - Planetary Sun Gear |
| 6 - Thrust Bearing with Race |
| |
