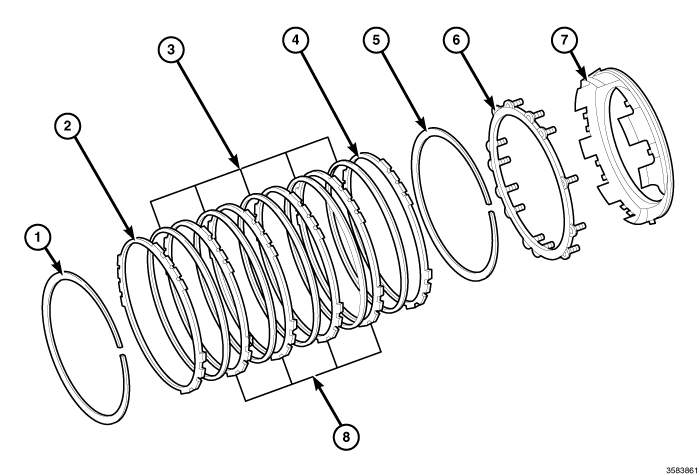

B2 Brake
WARNING: This page is about a different variant/trim than selected.
 Courtesy of CHRYSLER GROUP, LLC
|
| 1 - Snap Ring |
| 7 - 1st and Reverse Brake Return Piston |
| 2 - Flange |
| 8 - Clutch Plates |
| 3 - Clutch Discs |
| |
| 4 - Flange |
| |
| 5 - Snap Ring |
| |
| 6 - 1st and Reverse Brake Return Spring |
| |
