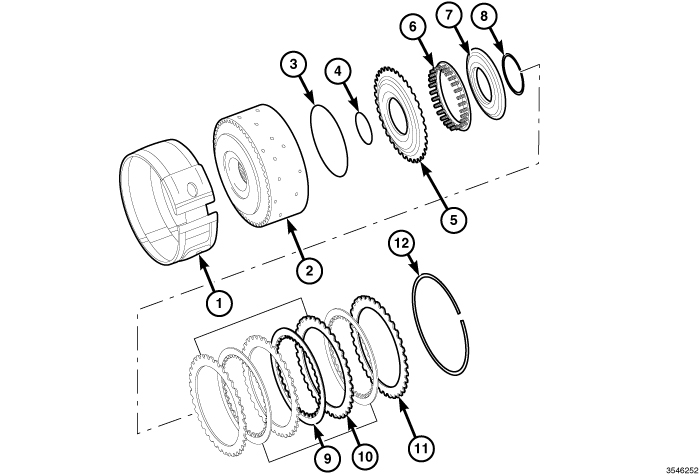

B1 Brake / C3 Clutch Assembly
WARNING: This page is about a different variant/trim than selected.
 Courtesy of CHRYSLER GROUP, LLC
|
| 1 - B1 Brake Band |
| 7 - C3 Clutch Balancer |
| 2 - C3 Drum |
| 8 - Snap Ring |
| 3 - O-Ring |
| 9 - Disc |
| 4 - O-Ring |
| 10 - Plate |
| 5 - C3 Piston |
| 11 - Flange |
| 6 - Piston Return Spring |
| 12 - Snap Ring |
