Valve Body: Installation: Installation

WARNING: This page is about a different variant/trim than selected.
GC0153118Courtesy of CHRYSLER GROUP, LLC
  1. Connect the linkage rod to the valve body and install to the transmission.
  2. Install the clip to the linkage rod (1).

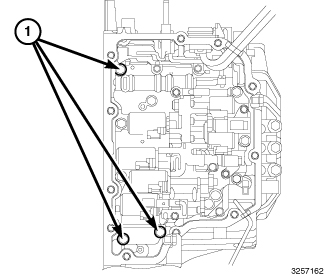

    GC0153123Courtesy of CHRYSLER GROUP, LLC
  3. Install the valve body bolts. The longer bolts (1) are installed in the positions shown above.
    Fig 1: Valve Body Bolts Tightening Sequence
    GC0153117Courtesy of CHRYSLER GROUP, LLC
  4. Install the remaining bolts. Hand tighten the bolts evenly in sequence. Final tightening of the bolts to 10 Nm (89 lbf-in) in the sequence shown above.
    GC0153116Courtesy of CHRYSLER GROUP, LLC
  5. Install the speed sensor connector (1) to the solenoid clamp.
    GC0153115Courtesy of CHRYSLER GROUP, LLC
  6. Install the sensor (3) to the valve body, install the oil temperature sensor clamp (2) and the bolt (1). Tighten the bolt to 7 Nm (62 lbf-in).
    GC0153112Courtesy of CHRYSLER GROUP, LLC
  7. Connect the solenoid connectors and the speed sensor connectors (1).
  8. Connect the wire harness to the clamps.
    GC0153124Courtesy of CHRYSLER GROUP, LLC
    CAUTION:

    Do not over apply sealant as fluid contamination may occur.

  9. Install a small and uniform bead of 3 bond gasket sealer to the side cover.
    GC0153111Courtesy of CHRYSLER GROUP, LLC
  10. Install the side cover and the side cover bolts (1). Tighten the bolts to 25 Nm (18 lbf-ft).
  11. Install the electric cooling fan. Refer to INSTALLATION .
  12. Install the battery tray. Refer to INSTALLATION .
  13. Install the engine cover (1). Refer to INSTALLATION or INSTALLATION for naturally aspirated models .
  14. Re-fill the transmission fluid. Refer to STANDARD PROCEDURE  .


GC0153262Courtesy of CHRYSLER GROUP, LLC
  1. Install a NEW  O-ring (1) and gasket (2) on the connector.
    GC0153261Courtesy of CHRYSLER GROUP, LLC
  2. Install the wiring harness in the transmission. Install the connector retaining clip (1.
    GC0153260Courtesy of CHRYSLER GROUP, LLC
  3. Install the wiring harness loom (1) and fastener (2). Tighten the fastener to 7 Nm (62 lbf-in).
    GC0153116Courtesy of CHRYSLER GROUP, LLC
  4. Install the speed sensor connector (1) on the solenoid clamp.
    GC0153115Courtesy of CHRYSLER GROUP, LLC
  5. Install the sensor (3) in the valve body, install the oil temperature sensor clamp (2) and the bolt (1). Tighten the bolt to 7 Nm (62 lbf-in).
    GC0153112Courtesy of CHRYSLER GROUP, LLC
  6. Connect the solenoid connectors and the speed sensor connectors (1).
  7. Connect the wire harness to the clamps.
  8. Install the side cover. Refer to VALVE BODY, INSTALLATION .
  9. Install the Transmission Control Module (TCM). Refer to MODULE, TRANSMISSION CONTROL (TCM), INSTALLATION .
