Knob, Gearshift: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect and isolate the negative battery cable.
    GC0177165Courtesy of CHRYSLER GROUP, LLC

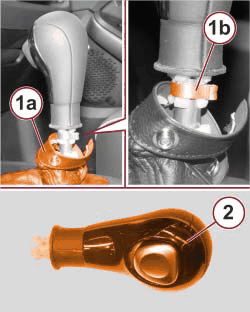

  2. Release the snap fastener (1a).
    GC0177164Courtesy of CHRYSLER GROUP, LLC
  3. Cut the shifter knob retaining clamp (1b).
    GC0153078Courtesy of CHRYSLER GROUP, LLC
  4. Firmly pull up on shifter knob and remove from the shifter shaft.
